瑞士"REGO-FIX" CYLF / ERM(X) 側固直柄刀桿

型號｜ CYLF-ERM(X)

產品介紹Product Introduction

* 偏擺 ≦5um
* 有側固平面，轉為自動數控機床設計，如: NOMURA、CITIZEN，MANURHIN，STAR 與TORNOS
* MX使用防脫螺帽，避免因扳手脫落造成傷害

- +

加入詢價銷售一空

產品規格說明Product Specification

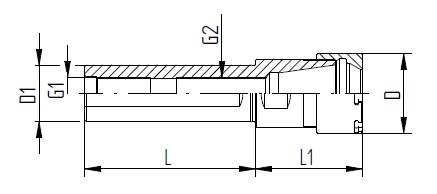

CYLF / ERM 直柄刀桿

型號	D	D1h6	L	L1	G1	G2	扳手
CYLF 12 x 043 / ERM 8	12	12	43	17	M5	-	E 8 M

CYLF 5/8" x 043 / ERM 8	12	15.875	43	15.5	M5	M5	E 8 M

CYLF 16 x 038 / ERM 11	16	16	38	19.5	M8 x 1	-	E 11 M
CYLF 16 x 140 / ERM 11	16	16	140	19.5	M8 x 1	M8 x 1	E 11 M
CYLF 16 x 035 / ERM 16	22	16	35	36	M8 x 1	-	E 16 M

CYLF 3/4"x 115 / ERM 11	16	19.05	115	19.5	M8 x 1	M8 x 1	E 11 M
CYLF 3/4" x 038 / ERM 16	22	19.05	38	27.5	M12 x 1	-	E 16 M
CYLF 3/4" x 050 / ERM 16	22	19.05	50	25	M12 x 1	-	E 16 M
CYLF 3/4" x 070 / ERM 16	22	19.05	70	29.5	M12 x 1	-	E 16 M
CYLF 3/4" x 120 / ERM 16	22	19.05	120	27.5	M12 x 1	M11 x 1	E 16 M
CYLF 3/4" x 140 / ERM 16	22	19.05	140	27.5	M12 x 1	M11 x 1	E 16 M

CYLF 20 x 060 / ERM 11	16	20	60	19.5	M8 x 1	-	E 11 M
CYLF 20 x 038 / ERM 16	22	20	38	26.5	M12 x 1	-	E 16 M
CYLF 20 x 050 / ERM 16	22	20	50	27.5	M12 x 1	-	E 16 M
CYLF 20 x 070 / ERM 16	22	20	70	27.5	M12 x 1	-	E 16 M
CYLF 20 x 120 / ERM 16	22	20	120	27.5	M12 x 1	M11 x 1	E 16 M
CYLF 20 x 140 / ERM 16	22	20	140	27.5	M12 x 1	M11 x 1	E 16 M

CYLF 22 x 038 / ERM 16	22	22	38	27.5	M12 x 1	-	E 16 M
CYLF 22 x 070 / ERM 16	22	22	70	27.5	M12 x 1	-	E 16 M
CYLF 22 x 100 / ERM 16	22	22	100	27.5	M12 x 1	M11 x 1	E 16 M
CYLF 22 x 080 / ERM 20	28	22	80	39	M12 x 1	M12 x 1	E 20 M

CYLF 25 x 065 / ERM 16	22	25	65	27.5	M12 x 1	-	E 16 M
CYLF 25 x 100 / ERM 20	28	25	100	28	M14 x 1	M14 x 1	E 20 M
CYLF 25 x 154 / ERM 20	28	25	154	28	M14 x 1	M14 x 1	E 20 M
CYLF 25 x 075 / ERM 25	35	25	75	47	M14 x 1	M14 x 1	E 25 M
CYLF 25 x 145 / ERM 25	35	25	145	36	M14 x 1	M14 x 1	E 25 M

CYLF 1" x 033 / ERM 16	22	25.4	33	28	M12 x 1	-	E 16 M
CYLF 1" x 065 / ERM 16	22	25.4	65	27.5	M12 x 1	-	E 16 M
CYLF 1" x 075 / ERM 16	22	25.4	75	27.5	M12 x 1	-	E 16 M
CYLF 1" x 100 / ERM 16	22	25.4	100	27.5	M12 x 1	M11 x 1	E 16 M
CYLF 1" x 100 / ERM 20	28	25.4	100	27.5	M14 x 1	M14 x 1	E 20 M
CYLF 1" x 140 / ERM 20	28	25.4	140	27.5	M14 x 1	M14 x 1	E 20 M

CYLF 32 x 070 / ERM 25	35	32	70	30	M18 x 1.5	-	E 25 M

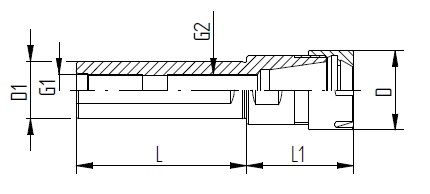

CYLF / ERM(X) 直柄刀桿

型號	D	D1h6	L	L1	G1	G2	扳手
CYLF 12 x 043 / ERMX 8	12	12	43	17	M5	-	E 8 MX

CYLF 5/8" x 043 / ERMX 8	12	15.875	43	15.5	M5	M5	E 8 MX

CYLF 16 x 038 / ERMX 11	16	16	38	19.5	M8 x 1	-	E 11 MX
CYLF 16 x 140 / ERMX 11	16	16	140	19.5	M8 x 1	M8 x 1	E 11 MX
CYLF 16 x 035 / ERMX 16	22	16	35	36	M8 x 1	-	E 16 MX

CYLF 3/4" x 115 / ERMX 11	16	19.05	115	19.5	M8 x 1	M8 x 1	E 11 MX
CYLF 3/4" x 038 / ERMX 16	22	19.05	38	27.5	M12 x 1	-	E 16 MX
CYLF 3/4" x 050 / ERMX 16	22	19.05	50	25	M12 x 1	-	E 16 MX
CYLF 3/4" x 070 / ERMX 16	22	19.05	70	29.5	M12 x 1	-	E 16 MX
CYLF 3/4" x 120 / ERMX 16	22	19.05	120	27.5	M12 x 1	M11 x 1	E 16 MX
CYLF 3/4" x 140 / ERMX 16	22	19.05	140	27.5	M12 x 1	M11 x 1	E 16 MX

CYLF 20 x 060 / ERMX 11	16	20	60	19.5	M8 x 1	-	E 11 MX
CYLF 20 x 038 / ERMX 16	22	20	38	26.5	M12 x 1	-	E 16 MX
CYLF 20 x 050 / ERMX 16	22	20	50	27.5	M12 x 1	-	E 16 MX
CYLF 20 x 070 / ERMX 16	22	20	70	27.5	M12 x 1	-	E 16 MX
CYLF 20 x 120 / ERMX 16	22	20	120	27.5	M12 x 1	M11 x 1	E 16 MX
CYLF 20 x 140 / ERMX 16	22	20	140	27.5	M12 x 1	M11 x 1	E 16 MX

CYLF 22 x 038 / ERMX 16	22	22	38	27.5	M12 x 1	-	E 16 MX
CYLF 22 x 070 / ERMX 16	22	22	70	27.5	M12 x 1	-	E 16 MX
CYLF 22 x 100 / ERMX 16	22	22	100	27.5	M12 x 1	M11 x 1	E 16 MX
CYLF 22 x 080 / ERMX 20	28	22	80	39	M12 x 1	M12 x 1	E 20 MX

CYLF 25 x 065 / ERMX 16	22	25	65	27.5	M12 x 1	-	E 16 MX
CYLF 25 x 100 / ERMX 20	28	25	100	28	M14 x 1	M14 x 1	E 20 MX
CYLF 25 x 154 / ERMX 20	28	25	154	28	M14 x 1	M14 x 1	E 20 MX
CYLF 25 x 075 / ERMX 25	35	25	75	47	M14 x 1	M14 x 1	E 25 MX
CYLF 25 x 145 / ERMX 25	35	25	145	36	M14 x 1	M14 x 1	E 25 MX

CYLF 1" x 033 / ERMX 16	22	25.4	33	28	M12 x 1	-	E 16 MX
CYLF 1" x 065 / ERMX 16	22	25.4	65	27.5	M12 x 1	-	E 16 MX
CYLF 1" x 075 / ERMX 16	22	25.4	75	27.5	M12 x 1	-	E 16 MX
CYLF 1" x 100 / ERMX 16	22	25.4	100	27.5	M12 x 1	M11 x 1	E 16 MX
CYLF 1" x 100 / ERMX 20	28	25.4	100	27.5	M14 x 1	M14 x 1	E 20 MX
CYLF 1" x 140 / ERMX 20	28	25.4	140	27.5	M14 x 1	M14 x 1	E 20 MX

CYLF 32 x 070 / ERMX 25	35	32	70	30	M18 x 1.5	-	E 25 MX
