瑞士"REGO-FIX" CYL / ERM(X) 直柄刀桿

型號｜ CYL-ERM(X)

產品介紹Product Introduction

* 偏擺 ≦3um
* 適用於瑞士製自動化機床，切削中心機與傳統機床可當延長桿使用
* MX使用防脫螺帽，避免因扳手脫落造成傷害

- +

加入詢價銷售一空

產品規格說明Product Specification

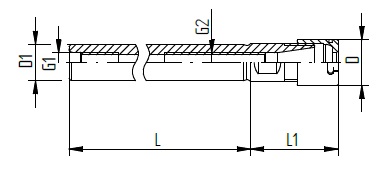

CYL / ERM 直柄刀桿

型號	D	D1h6	L	L1	G1	G2	扳手
CYL 06 x 045 / ERM 11	16	6	45	26.5	-	-	E 11 M

CYL 07 x 045 / ERM 11	16	7	45	26.5	-	-	E 11 M

CYL 08 x 080 / ERM 8	12	8	80	26	M5	-	E 8 M
CYL 08 x 056 / ERM 11	16	8	56	26.5	M5	-	E 11 M

CYL 3/8 " x 070 / ERM 8	12	9.525	70	23	M5	M5	E 8 M

CYL 10 x 060 / ERM 16	22	10	60	38.5	M5	-	E 16 M

CYL 12 x 080 / ERM 8	12	12	80	17	M5	-	E 8 M
CYL 12 x 080 / ERM 16	22	12	80	38.5	M5	-	E 16 M

CYL 1/2 " x 140 / ERM 11	16	12.7	140	29.5	M6	M6	E 11 M
CYL 1/2 " x 140 / ERM 16	22	12.7	140	37	M6	M6	E 16 M

CYL 16 x 150 / ERM 11	16	16	150	21	M8 x 1	M8 x 1	E 11 M
CYL 16 x 100 / ERM 20	28	16	100	42.5	M8 x 1	-	E 20 M

CYL 5/8" x 150 / ERM 11	16	15.875	150	19.5	M8 x 1	M8 x 1	E 11 M

CYL 3/4" x 155 / ERM 16	22	19.05	155	26.5	M12 x 1	-	E 16 M
CYL 3/4 " x 100 / ERM 25	35	19.05	100	47	M12 x 1	M12 x 1	E 25 M

CYL 20 x 155 / ERM 16	22	20	155	25.5	M12 x 1	M11 x 1	E 16 M

CYL 25 x 155 / ERM 20	28	25	155	27	M14 x 1	M14 x 1	E 20 M

CYL 1" x 155 / ERM 20	28	25.4	155	27	M14 x 1	M14 x 1	E 20 M

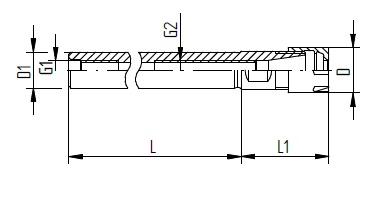

CYL / ERMX 直柄刀桿

型號	D	D1h6	L	L1	G1	G2	扳手
CYL 06 x 045 / ERMX 11	16	6	45	26.5	-	-	E 11 MX

CYL 07 x 045 / ERMX 11	16	7	45	26.5	-	-	E 11 MX

CYL 08 x 080 / ERMX 8	12	8	80	26	M5	-	E 8 MX
CYL 08 x 056 / ERMX 11	16	8	56	26.5	M5	-	E 11 MX

CYL 3/8 " x 070 / ERMX 8	12	9.525	70	23	M5	M5	E 8 MX

CYL 10 x 060 / ERMX 16	22	10	60	38.5	M5	-	E 16 MX

CYL 12 x 080 / ERMX 8	12	12	80	17	M5	-	E 8 MX
CYL 12 x 080 / ERMX 16	22	12	80	38.5	M5	-	E 16 MX

CYL 1/2 " x 140 / ERMX 11	16	12.7	140	29.5	M6	M6	E 11 MX
CYL 1/2 " x 140 / ERMX 16	22	12.7	140	37	M6	M6	E 16 MX

CYL 16 x 150 / ERMX 11	16	16	150	21	M8 x 1	M8 x 1	E 11 MX
CYL 16 x 100 / ERMX 20	28	16	100	42.5	M8 x 1	-	E 20 MX

CYL 5/8" x 150 / ERMX 11	16	15.875	150	19.5	M8 x 1	M8 x 1	E 11 MX

CYL 3/4" x 155 / ERMX 16	22	19.05	155	26.5	M12 x 1	-	E 16 MX
CYL 3/4 " x 100 / ERMX 25	35	19.05	100	47	M12 x 1	M12 x 1	E 25 MX

CYL 20 x 155 / ERMX 16	22	20	155	25.5	M12 x 1	M11 x 1	E 16 MX

CYL 25 x 155 / ERMX 20	28	25	155	27	M14 x 1	M14 x 1	E 20 MX

CYL 1" x 155 / ERMX 20	28	25.4	155	27	M14 x 1	M14 x 1	E 20 MX
